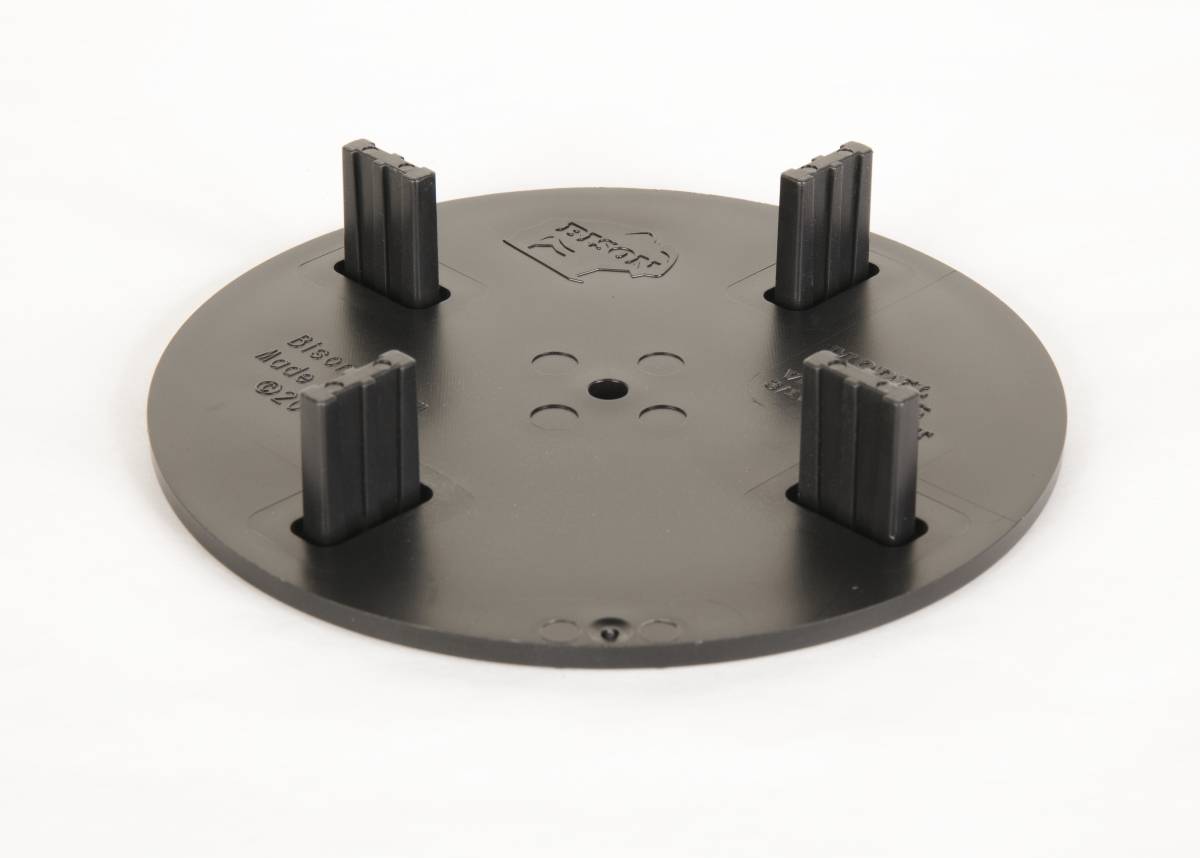

Fixed Height Stackable Pedestal HD25-18/HD25-316

Fixed Height Stackable Pedestal | HD25-18 or HD25-316

Model: HD25-18
Fixed Height Stackable Pedestal with 1/8″ (3.2 mm) Tabs

Model: HD25-316
Fixed Height Stackable Pedestal with 3/16″ (4.5 mm) Tabs

Note: Bison recommends 3/16″ tabs when using Bison Wood Tiles.
Bison Versadjust Fire Rated Pedestals are available, for more information, click here.

Categories:



Product Information

Height

1/4" (6 mm) – Stack up to 4
Base Diameter

5-7/8" (149 mm)
Weight

0.11 lbs (0.05 kg)
Weight Bearing Capacity

Supports 1250 lbs (567 kg) FoS:3 per Pedestal

Description

Versadjust Cut Sheet

Bison Low Cut Sheet

Versadjust Installation Instructions

Versadjust Specification

Versadjust Specification

Versadjust CAD Details

Download Revit Models From BIMobject
